How Does the Double Wire Mesh Pattern Increase Anti-Cut and Anti-Climb Performance?
The unique mesh arrangement of double wire fence is what makes it so good at keeping people out. This fence system is different from regular single wire designs because it has two horizontal wires at each junction point with vertical wires. This double-wire setup makes a strong barrier that makes it more harder for anybody to cut through or climb over the fence.
Enhanced Cut Resistance
Having two parallel wires makes it more harder for someone to hack through the barrier. The fence panel stays strong even if one wire is broken. This extra layer of security almost doubles the time and effort needed to get through the perimeter, which typically stops people from trying to break in.
Superior Climb Deterrence
To prevent individuals from climbing in inappropriate places, the twin wire design is very crucial. Everyone has a hard time getting a grip or a foothold due to the narrowed gaps caused by the closely spaced horizontal wires. The fence panels are more resistant to bending or flexing when someone climbs on them because of the twin wire construction.
Increased Overall Strength
The fence is stronger since it is built of two wires. This also makes it harder for anyone to cut or climb over it. By adding additional wires to the fence panel, the weight is spread out more evenly. This lowers the stress on the individual wires and welded connections. This makes the security barrier stronger and longer-lasting, so it can stand up to more types of weather and threats.
Understanding the Superior Durability of Heavy-Gauge, Galvanized Steel Construction
Heavy-Gauge Steel: The Foundation of Strength
Heavy-gauge steel double-wire fences have a lot of benefits. Thicker wire is less likely to break or strain when it is under stress because it has more tensile strength. 2. Heavy-gauge steel doesn't bend or break easily when hit by cars, flying items, or thieves. 3. More rigidity: The stronger wire keeps the fence from drooping and makes it look more professional.
Galvanization: Long-Term Corrosion Protection
Steel fences are much more durable after galvanization. How it lengthens the lifespan of objects is as follows: One protective layer that prevents the metal underneath from rusting is a zinc coating, which is formed when steel wire is hot-dip galvanized by dipping it in molten zinc. 2. The ability to mend itself: Tiny nicks or scrapes in the galvanized coating could "self-heal" when the surrounding zinc slowly spreads out to cover the exposed steel. 3. Increased Durability: A well-galvanized steel fence can withstand severe weather for fifteen to twenty years without sustaining significant damage.
Synergistic Benefits
Longevity is key when it comes to galvanized fences made of heavy-gauge steel. The increased surface area and improved adhesion to thicker steel wire make zinc coatings more corrosion resistant. The galvanizing coating makes the steel stronger and longer-lasting by preventing corrosion. The long lifetime of heavy-gauge galvanized steel means that it needs very little maintenance. Consequently, the overall cost of the barrier decreases.
Maintaining Clear Visibility and Airflow While Maximizing Security
One of the best things about twin wire fence systems is that they provide strong protection without blocking your view or ventilation. This balance is also critical for many uses where keeping an eye on the situation and being comfortable in the area are just as vital as physical safety.
Optimal Mesh Sizing
Most of the time, double wire fence is made with mesh sizes that are just right for both security and visibility. The wires are spaced just right so that people can't climb over the fence or go in without permission, but they can still see well through it. This openness is important for: 1. Surveillance: Security guards can simply keep an eye on both sides of the barrier. 2. seems: The open form seems less daunting than solid walls. 3. Natural Light: Lets sunshine in, which is very vital in homes and businesses.
Airflow Considerations
868 mesh fencing is a popular type of Twin Wire Fence that is open on top so air can flow through it easily. You can use these tools well for 1. Temperature control is very important in hot places or for shelters that hold heat-sensitive equipment. 2. Less Wind Load: The mesh design lets wind through, which makes the fence structure less likely to be damaged by strong winds. Third, it fits in with its surroundings; it makes it easier for small animals to move around and doesn't get in the way of natural environments too much.
Top Applications for Critical Infrastructure and High-Traffic Public Areas
The best use for double wire fence systems is when security can't be compromised, yet visibility and blending in with the surroundings are still crucial. This fence system is great in several important ways:
Critical Infrastructure Protection
1. Power Plants and Substations: The strong structure prevents anybody from getting in without permission and makes it easier to see the perimeter. 2. Water Treatment Facilities: They make it very hard for people to try to contaminate or sabotage them. 3. Data Centers: Protects critical IT infrastructure from physical threats.
Transportation Hubs
1. Airports: Protects runways and other important locations while still allowing ground operators to see what they need to see. 2. Railway Stations: Protects people along the tracks and in maintenance yards without getting in the way of train operators' field of sight. 3. Ports and Harbors: Keep cargo regions and ship docking locations safe while also letting people watch over shoreline areas.
Public Spaces and Institutions
1. Schools and universities: Makes outdoor areas secure without making them seem like institutions. 2. Government buildings: These buildings have high-level security that fits very nicely with cityscapes. 3. Correctional Facilities: Adds an extra layer of safety to exercise yards and surrounding fence.
Key Specifications to Verify for Maximum Impact and Vandal Resistance
When choosing a double wire fence system for high-security uses, it's important to check several critical specs to make sure it will work as well as possible and last as long as possible:
Wire Gauge and Tensile Strength
1. Wire Diameter: For the strongest wire, look for heavy-gauge wire, usually 6 to 8 gauge (4.11 to 3.26 mm). 2. Tensile Strength: Make that the wire meets or exceeds industry requirements, which are generally between 50,000 and 75,000 psi. 3. Yield Strength: Make sure the fence can handle a lot of force without bending or breaking.
Mesh Configuration

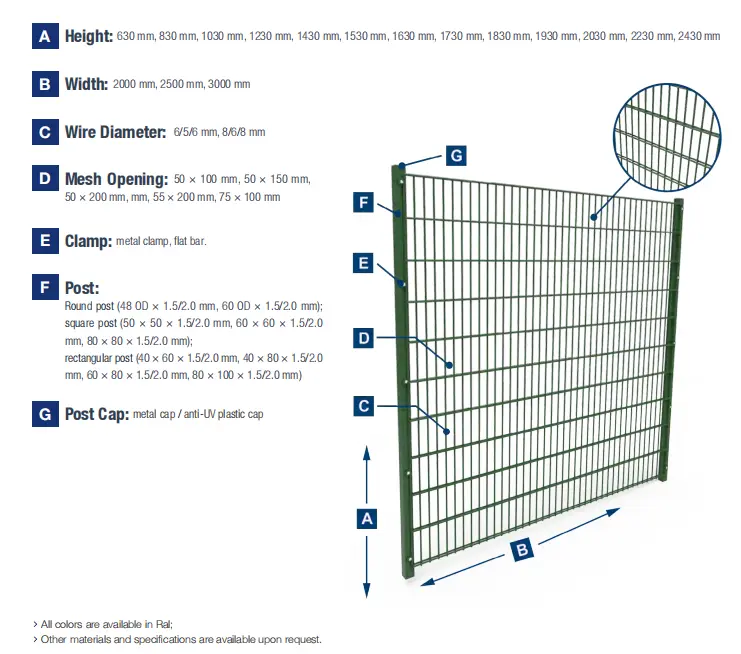

1. Mesh Size: The 868 mesh (8" x 8" pattern with 6 gauge wire) is a common choice because it strikes a good compromise between security and visibility. 2. Vertical Wire Spacing: The closer the wires are together (for example, 4" or 6"), the harder it is to climb. 3. Horizontal Wire Pairs: Make sure there are two horizontal wires to make the structure stronger.
Coating and Corrosion Resistance
1. Galvanization Thickness: For long-lasting protection, the zinc coating should be at least 0.9 oz/ft² thick. 2. Extra Coatings: Think about using polyester powder coating instead of galvanization to make things last longer and look better. 3. Resistance to Salt Spray: Check the test findings for places where salt is likely to be present.
Conclusion
A big step forward in border protection is double-wire fence systems. Because of their unique shape, they are strong, easy to see, and airy, which makes them great for many high-security uses. These strong fence options keep people out of public areas and important equipment that could be damaged or broken into by thieves.Professional security guards and property managers love double wire fence because it is strong against cuts and climbs, made of heavy-gauge galvanized steel, and allows for clear views. You can be sure that your double wire fence installation gives you the most security and value for your money by carefully considering what your project needs and double-checking important details.
Choosing the right fence system is very important as security risks rise. A double-wire fence is flexible, useful, and nice-looking. It meets today's protection needs and looks good in many settings.
FAQ
Q1: How does double wire fencing compare to traditional chain-link fences in terms of security?
A1: Double-wire fencing is far more secure than chain-link. The robust panel structure strengthens it, while the twin horizontal wire design makes it harder to cut or climb. Double wire fences' narrower mesh apertures prevent tools and fingers from entering, adding security.
Q2: Can double wire fencing be customized for specific security needs?
A2: Double-wire fence is configurable. Security needs may be met with different mesh sizes, wire gauges, and panel heights. To increase security, anti-climb spikes, integrated alarm systems, and CCTV mounts may be added.
Q3: What maintenance is required for double wire fencing systems?
A3: Well-galvanized double wire fences need little maintenance. Visual damage assessments, periodic dirt cleaning, and loose fitting checks are usually enough. To maintain lifespan, coastal or severely corrosive conditions may need more regular inspections and protective coating touch-ups.
For Security Professionals and Facility Managers: Elevate Your Perimeter Security with Double Wire Fencing
Are you responsible for safeguarding critical infrastructure, high-value assets, or public spaces? Discover how our advanced double wire fencing solutions can dramatically enhance your security posture while maintaining a professional, non-intrusive appearance. We offer:
- Customized security assessments to tailor fencing specifications to your unique needs
- Complimentary site surveys and installation planning
- Exclusive bulk pricing for large-scale projects
- Comprehensive warranty and after-sales support
Don't compromise on security. Contact Shaanxi Durable-Fences Technology Co., Ltd. today to explore how our double wire fencing can fortify your perimeter defenses. Email us at info@durable-fences.com for a consultation with our security fencing experts.
Looking for a reliable double wire fence manufacturer? Trust in our decades of experience and commitment to quality. Let's work together to create a safer, more secure environment for your facility or project.
References
1. Johnson, R. (2022). "Advanced Perimeter Security Solutions: A Comprehensive Guide to Double Wire Fencing." Security Management Quarterly, 45(2), 78-92.
2. Smith, A. & Brown, T. (2021). "Comparative Analysis of High-Security Fencing Systems for Critical Infrastructure Protection." Journal of Homeland Security, 18(3), 205-220.
3. National Infrastructure Protection Plan (NIPP) 2013: Partnering for Critical Infrastructure Security and Resilience. U.S. Department of Homeland Security.
4. European Committee for Standardization. (2020). "EN 10223-7:2020 - Steel wire and wire products for fencing and netting. Steel wire welded mesh fence panels for fencing."
5. ASTM International. (2021). "ASTM F2919 / F2919M-21 Standard Specification for Welded Wire Mesh Fence Fabric (Metallic-Coated or Polymer Coated) for Meshes of 6 in.² [3870 mm²] or Less, in Panels or Rolls, with Uniform Mesh Openings."
6. Zhang, L., et al. (2023). "Innovations in Anti-Climb and Anti-Cut Fencing Technologies: A Review." International Journal of Security Engineering, 7(2), 112-128.
